モデラ―・ビューワ―

Currently there are AirCube of Orthogonal Grid Mesh Modeler and 3D Finite Element Method Viewer.
※ 3-D finite element mesh modeler is under development.

直交格子対応プリポストシステム AirCube

モデラ―・ビューワ―
"AirCube"
  • It is an orthogonal lattice type originally developed as a pre-post dedicated to μ-WAVE
  • It is currently used as a pre-post of fluid analysis and finite element method
  • It is a very easy-to-use modeler that just places primitive solids in space
  • We split tens of millions of meshes in a moment
  • Beautiful result display such as arbitrary cross section contour can be done

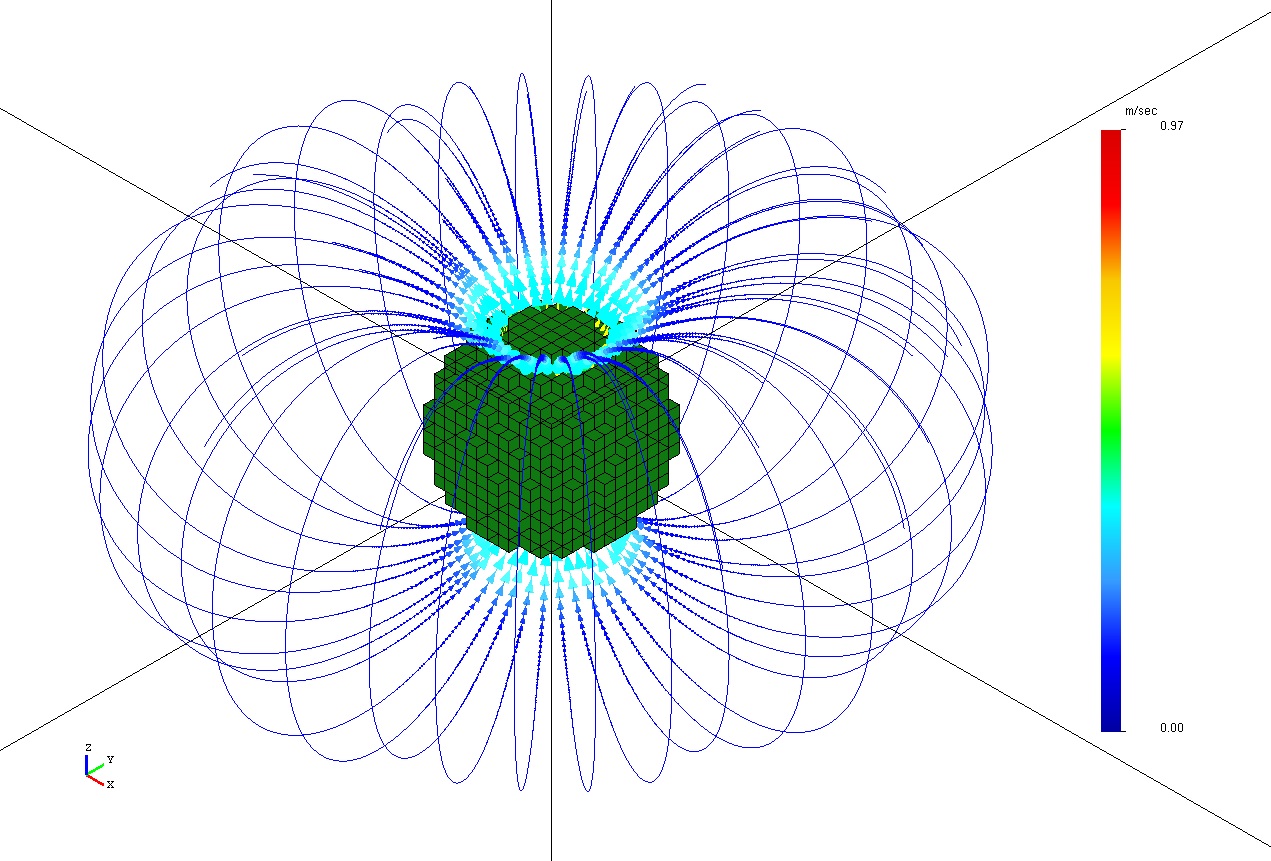

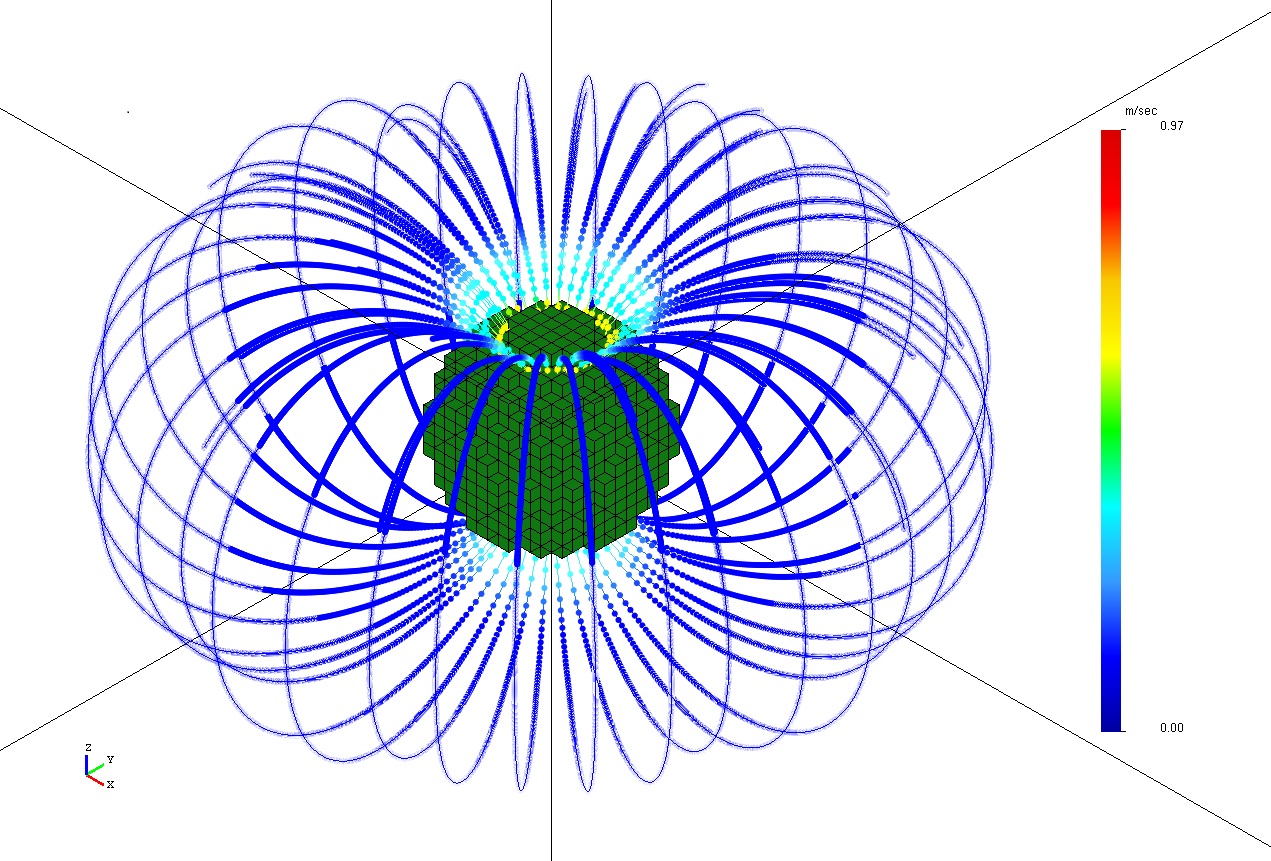

  • Stream line (stream line) display function was added example 1 example 2

詳細情報

有限要素対応3次元ビューワ- MF-GUI

モデラ―・ビューワ―
"MF-GUI"
  • You can display the finite element method result
  • Beautiful result display such as arbitrary cross section contour can be done
  • A graph can be displayed between any two points in the cross section
  • It corresponds to unsteady results
  • (It is developing into a finite element modeler)

詳細情報

市販のプリポストFemap

モデラ―・ビューワ―
"Femap"
  • It is a modeler and viewer for finite element
  • The CAD interface is also substantial, and it generates superior mesh
  • Developed by Siemens

詳細情報
